AWS Elastic Container Registry (ECR)

🔐 Setup Required

The ecr registry module lets you authenticate against private AWS Elastic Container Registry (ECR) repositories.

⚙️ Configuration Variables​

WUD_REGISTRY_ECR_{registry_name}_ACCESSKEYID
Requiredstring

AWS IAM Access Key ID

Allowed values:[AWS Access Key ID](https://docs.aws.amazon.com/general/latest/gr/aws-sec-cred-types.html)
WUD_REGISTRY_ECR_{registry_name}_REGION
Requiredstring

AWS Region Code

Allowed values:[AWS Region Code](https://docs.aws.amazon.com/general/latest/gr/rande.html#regional-endpoints) (e.g. `us-east-1`, `eu-west-1`)
WUD_REGISTRY_ECR_{registry_name}_SECRETACCESSKEY
Requiredstring

AWS IAM Secret Access Key

Allowed values:[AWS Secret Access Key](https://docs.aws.amazon.com/general/latest/gr/aws-sec-cred-types.html)
WUD_REGISTRY_ECR_{registry_name}_ACCOUNTID
Optionalstringdefault: Derived from image name

AWS Account ID (used to filter when multiple accounts are configured)

Allowed values:12-digit numeric string
WUD_REGISTRY_ECR_{registry_name}_PUBLIC
Optionalbooleandefault: false

Whether the registry is an ECR Public gallery

Required IAM Policy

Ensure the AmazonEC2ContainerRegistryReadOnly policy (or equivalent ecr:GetAuthorizationToken, ecr:BatchGetImage, ecr:GetDownloadUrlForLayer permissions) is attached to the IAM user.

🚀 Examples​

Authenticate with Private AWS ECR​

services:
  whatsupdocker:
    image: getwud/wud
    environment:
      - WUD_REGISTRY_ECR_PRIVATE_ACCESSKEYID=AKIAIOSFODNN7EXAMPLE
      - WUD_REGISTRY_ECR_PRIVATE_SECRETACCESSKEY=wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY
      - WUD_REGISTRY_ECR_PRIVATE_REGION=eu-west-1

📖 Setup Guide: Creating an AWS IAM User for ECR​

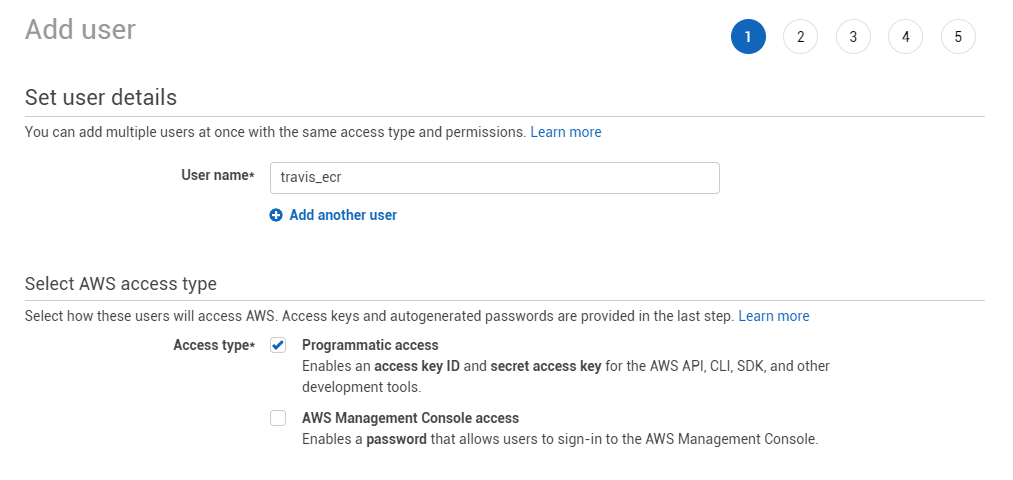

1. Create an IAM User​

Open the AWS IAM Console and create a new IAM user.

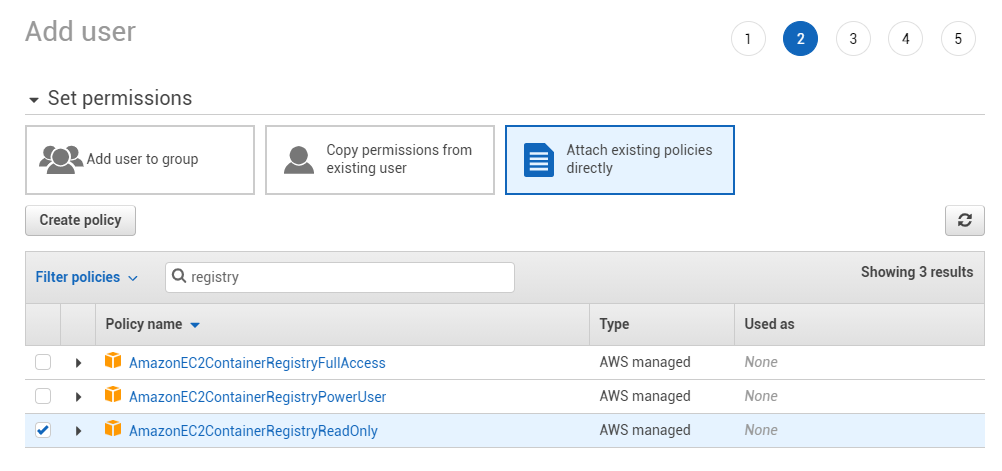

2. Attach the Read-Only Policy​

Attach the AmazonEC2ContainerRegistryReadOnly managed policy to the user.

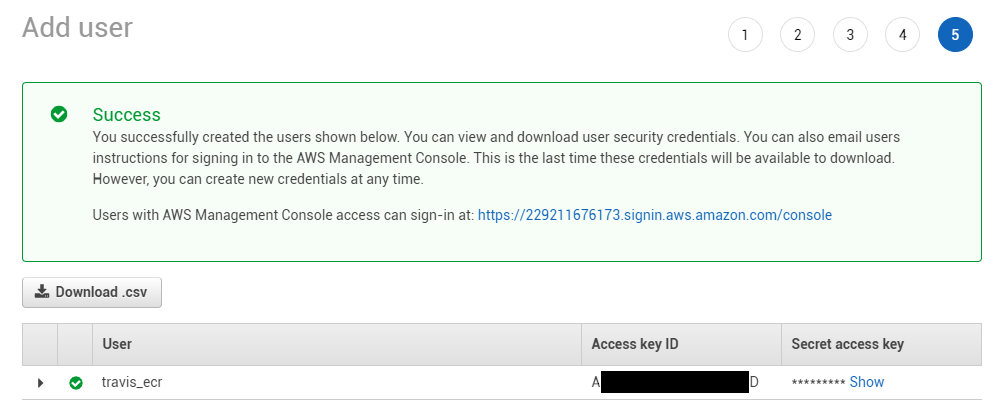

3. Generate Access Keys​

Create an Access Key under Security credentials, and copy the Access Key ID and Secret Access Key.
